Duct & Aerial Cable

Loose Tube Stranded Reinforced Core Armored Flame Retardant Fiber Optic Cable (GYTZA53)

The structure of GYTZA53 optical cable is to put 250µm optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The center of the cable core is a metal reinforcement core. For optical cables with certain cores, a layer of polyethylene (PE) needs to be extruded outside the metal reinforcement core. The loose tube and filling rope are twisted around the central reinforcement core to form a compact and round cable core, and the gaps in the cable core are filled with water-blocking fillers. After the plastic-coated aluminum tape (APL) is longitudinally wrapped, a polyethylene inner sheath is extruded, and after the double-sided plastic-coated steel tape (PSP) is longitudinally wrapped, a flame-retardant outer sheath is extruded to form the cable.
    Characteristics
    Excellent mechanical properties, temperature characteristics and flame retardant properties.
    Excellent mechanical properties, temperature characteristics and flame retardant properties.
    The tube is filled with special grease to provide critical protection for the optical fiber.
    Good pressure resistance and softness.
    The following measures are taken to ensure the waterproof performance of the optical cable:
    ● Single steel wire center reinforcement core.
    ● Loose tube filled with special waterproof compounds.
    ● Complete cable core filling.
    ● Plastic-coated aluminum tape (APL) moisture barrier.
    ● Double-sided plastic-coated steel tape (PSP) improves the optical cable‘s ability to resist moisture penetration.
    ● Good water-blocking materials prevent longitudinal water seepage of the optical cable.

    Product Standards
    GYTZA53 optical cables comply with YD/T 1114 and IEC 60794-1 standards.

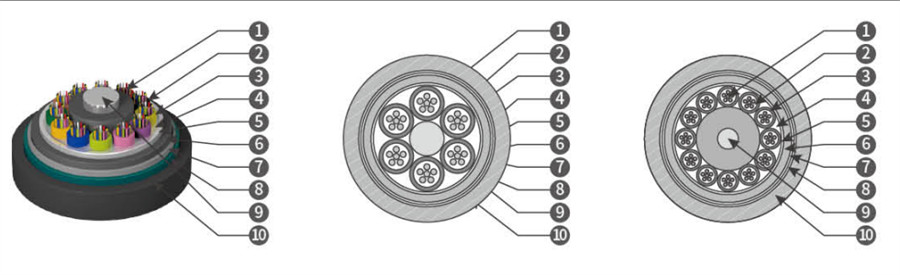

    Structure Drawing
    1.Optical Fibre
    2. Cable Sheath Filler
    3. Loose Tube
    4. Cable Core Filler
    5. Plastic-Coated Aluminum Tape
    6. Polyethylene Inner Sheath
    7. Water-Blocking Material
    8. Plastic-Coated Steel Tape
    9. Metal Reinforcing Core
    10. Polyethylene Outer Sheath

    Technical Parameters
    Model (Increasing by 2 fibers) (2) Fiber Count Tube Number Filling Rope Number Reference Optical Cable Weight (kg/km) Tensile Force Long-Term / Short-Term /
    (N)
    Crush Resistance Long/Short Term / (N/100mm) Bending Radius Static/Dynamic /
    (mm)
    GYTZA53-2~6Xn 2~6 1 5 217 1000/3000 1000/3000 12.5D/25D
    GYTZA53-8~12Xn 8~12 2 4 217
    GYTZA53-14~18Xn 14~18 3 3 217
    GYTZA53-20~24Xn 20~24 4 2 217
    GYTZA53-26~30Xn 26~30 5 1 217
    GYTZA53-32~36Xn 32~36 6 0 217
    GYTZA53-38~48Xn 38~48 4 1 235
    GYTZA53-50~60Xn 50~60 5 0 235
    GYTZA53-62~72Xn 62~72 6 0 250
    GYTZA53-74~84Xn 74~84 7 1 286
    GYTZA53-86~96Xn 86~96 8 0 286
    GYTZA53-98~108Xn 98~108 9 1 330
    GYTZA53-110~120Xn 110~120 10 0 330
    GYTZA53-122~132Xn 122~132 11 1 366
    GYTZA53-134~144Xn 134~144 12 0 366
    GYTZA53-146~216Xn 146~216 13~18 5~0 366
    Storage/Operating Temperature: -40℃-+70℃

    Optical Characteristics
    Fibre Type Attenuation (+20℃) Bandwidth Numerical Aperture Cable Cut-off Wavelength λcc
    @850nm @1300nm @1310nm @1550nm @850nm @1300nm
    G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- --- ≤1260nm
    G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- --- ≤1450nm
    50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km 0.200±0.015 NA ---
    62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km 0.275±0.015 NA ---

    Note:
    a. Suffix Xn denotes fibre type
    b. The colour arrangements of fibre and tube are specified in the colour identification table
    c. The cable shouldn‘t store in outdoor environment more than 6 months in order to keep the cable reel good state

    Application: Duct/Aerial/Direct Burial
