Characteristics
• Exhibits excellent mechanical properties and temperature characteristics
• The loose jacket material itself has good hydrolytic resistance and high strength
• The inner tube is filled with special grease, providing crucial protection for the optical fiber
• The specially designed tight optical cable structure effectively prevents the jacket from retracting
• The PE sheath has excellent resistance to ultraviolet radiation
• Utilizes Fiber Optic 4, 6, 8, 12-core ribbon, with flexible application
• Measures are taken to ensure the waterproof performance of the optical cable:
- A single steel wire central reinforcing core
- Filling of special waterproof compound inside the loose jacket
- Complete filling of the cable core
- Coated aluminum tape (APL) moisture-proof layer
Product Standards
The GYHTY optical cable complies with the standards of YD/T 981.3 and IEC 60794-1.

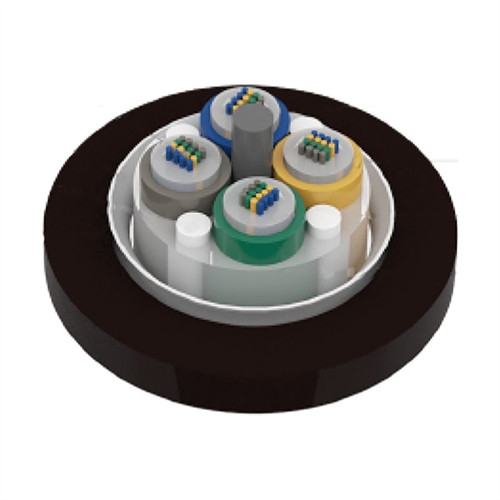

Structure Drawing

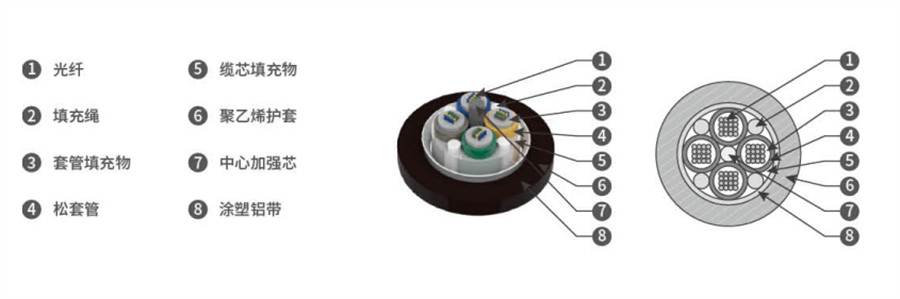

1.Optical Fibre
2. Filling Rope
3. Tube Filler
4. Loose Tube
5. Cable Core Filler
6. Polyethylene Jacket
7. Center Reinforcement Core
8. Plastic-Coated Aluminum Strip
Technical Parameters
| Cable Type (Increased by 2 fibres) （2） | Fibre Count | Tube Number | Filling Rope Number | Cable Weitht (Ref) （kg/km） | Tensile Strength Long/Short Term / (N) |
Crush Resistance Long/Short Term / (N/100mm) | Bending Rdius Dynamic/Static / (mm) |
| GYDTA-48Xn | 4×12 | 1 | 3 | 265 | 600/1500 | 300/1000 | 10D/20D |
| GYDTA-96Xn | 8×12 | 2 | 2 | 265 | |||
| GYDTA-144Xn | 12×12 | 3 | 1 | 265 | |||
| GYDTA-216Xn | 18×12 | 3 | 1 | 295 | |||
| GYDTA-288Xn | 24×12 | 4 | 0 | 295 | |||
| GYDTA-360Xn | 30×12 | 5 | 0 | 295 | |||
| GYDTA-432Xn | 36×12 | 6 | 0 | 395 |
Storage and usage temperature: -40℃ to +70℃
Optical Characteristics
| Fiber Type | Attenuation （+20℃） | Bandwith | Numerical Aperture | Cable Cut-off Wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
Note:
a. Suffix Xn denotes fibre type
b. The colour arrangements of fibre and tube are specified in the colour identification table
c. The cable shouldn‘t store in outdoor environment more than 6 months in order to keep the cable reel good state
Applicable: Duct, Aerial
