How to Install Unmanned Aerial Vehicle Fiber Optic?

Preparation before using the optical disk

1. Be sure to remove the transportation protection tie and 4 protection snaps before using the optical fiber disk.

2. (Note: do not take the buckle directly out of the fiber will be broken.)

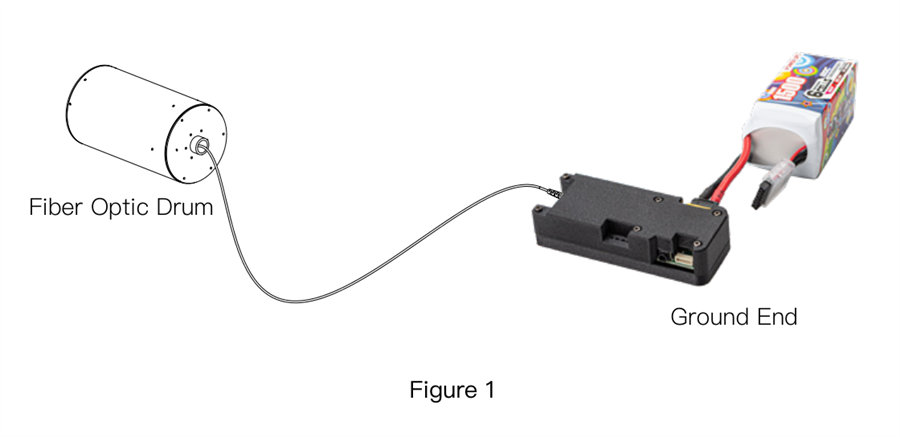

3. the optical fiber disk outlet FC fiber optic port of the protective shell before use need to remove, draw out the optical fiber into the ground end of the module.

Ground Side Wireless Connection

1. Connect the SH1.0 cable from the sky terminal to the flight controller as shown in the diagram “Ground terminal connection mode 1 (wireless)”.

2. Connect the ground SH1.0 line to the receiver and the map transmitter.

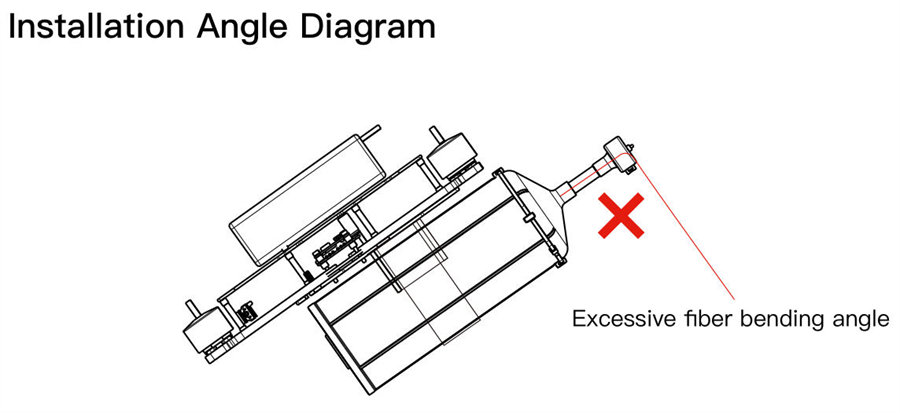

3. Fix the sky end and fiber optic disk, pay attention to the fiber optic nozzle as far as possible away from the UAV propeller to avoid entanglement accident.

4. Connect the fiber optic harness, connect the FC ports on both ends of the fiber optic disk to the FC port on the sky end and the FC port on the ground end, and note that the nozzle end is connected to the FC port on the ground end.

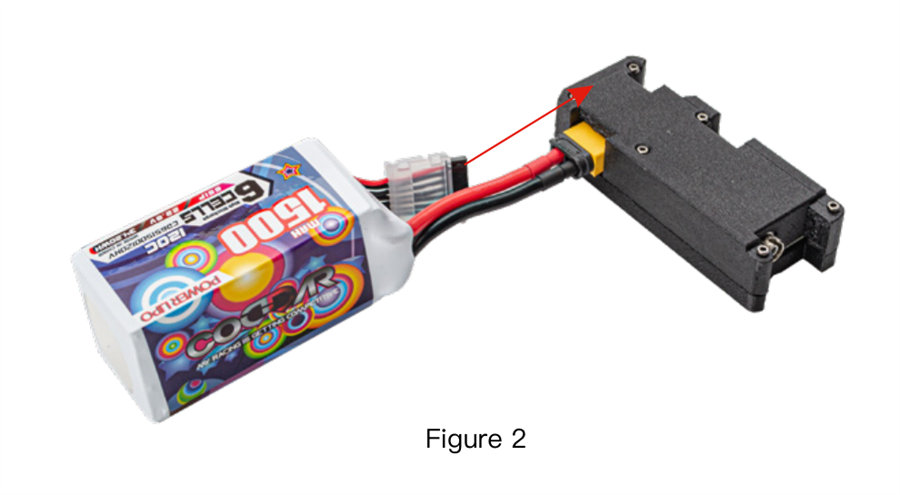

5. Insert the lithium battery of the ground end into the ground end connector after it is fully charged. (As Figure 2)

Precautions

1. The input voltage 11.1-26v is within the safe range, please do not exceed or fall below the limit voltage, do not reverse the positive and negative poles.

2. Do not make the optical fiber folding circle, to avoid being cut by sharp objects and lead to fiber breakage.

3. Pay attention to the protection of fiber optic connectors and FC interfaces, avoid dust and oil and water, save the interface protection cover well twisted.

4. Store in a cool, dry and light-proof area.

5. Fiber optic disk precision structure, gently take and put, vertical storage.
